2020 Steel Competition

Honorable Mention: the HOODOO

Alena Nagornaia, Solanda Magnuson, Elitsa Vutova, and Amy Tang

Juror Comments
the HOODOO receives an honorable mention for its esthetically beautiful and interesting idea as a formal strategy. Aesthetically, the students present the building through amazing renderings and intricate steel detailing.
Project Description

The Hoodoo is a high-rise residential tower located at 1 Oak Street in San Francisco.

The Hoodoo tower interprets the wind erosion of a rock formation. Its shape responds to existing wind patterns and minimizes the influence of lateral forces. The geological hoodoo has a layered structure, with the strongest and densest layers remaining above eroded weaker layers. The tower structure adopts a similar concept, using the outrigger floors. The central void stresses the concept of wind and creates a vertical community space.

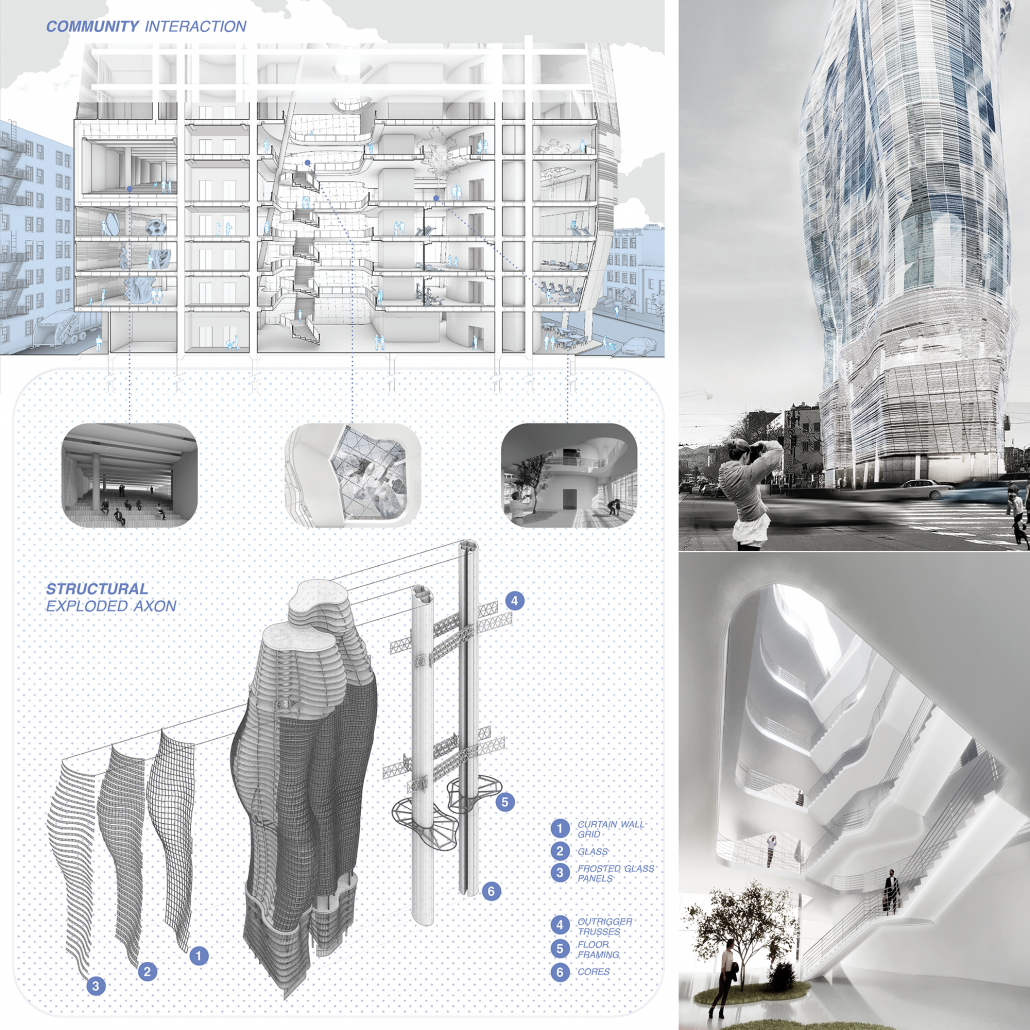

The structure of the building is comprised of canted steel cylindrical columns that twist around the perimeter of the building. There are two three story steel outrigger trusses that are splitting the tower into thirds. The cores are tied together using these outrigger trusses which are also surrounded by a system of steel belt trusses.

The envelope is a double skin facade system for the tower and a screen system for the podium. Horizontal frit creates a pattern which would correspond with the erosion concept, decrease the sun exposure, and create living shadows in the apartment units. The podium system repeats the same pattern of frit using a terracotta screen instead.

We designed the podium to address the intersection of two major streets of SF with an open space on the first floor. The podium atrium connects Market and Oak streets. It also provides the view to eroded towers as well as the city which gives the sense of place to the visitors. The Podium also includes such spaces as outside cafe, rock formation museum, roof garden and other civic spaces.

The tower provides the housing with 450+ units varying from 6 to 10 units per floor. The Housing Unit is a segment of a floor plate. This allows to make every room of a unit have different views. The balconies of a unit appear in certain rooms to create an eroded pattern from exterior.

We see the vertical community as the spaces along the void which provide the street views as well as immersive views between the two towers. Besides that, the vertical community spaces include smaller atrium for community interaction, conference and study rooms on some levels and a rooftop lounge on the upper floor.
